Cryogenic Deflashing Unit CB-30 – เครื่องกำจัดครีบยาง
ออกแบบมาเป็นพิเศษสำหรับการหลุดร่อนของยาง พลาสติก ไดคาสท์ แมกนีเซียมและส่วนประกอบของซิงค์
Model CB-30 Liquid Nitrogen Deflashing System
– Low Media Consumption

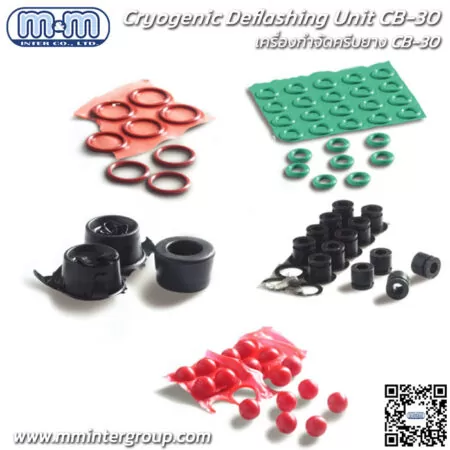

– Precision rubber components – NR to Silicon Rubber
– Low Noise Level (superior sound insulation)
– Low Nitrogen Usage
– Simple Electrical Controls
– High Efficiency Blast Wheel
– Excellent Separation System
– Heated Door Seal
– Safety Interlocks
– Easy Media Change Over
– Simple and Very Low maintenance
– Easy Clean-up
Benefits
– Stainless Steel Base Sieving Machine.
– Safety Features – Safety Controller / Emergency Stop & Other Features Meeting Europe & U.S. Requirement.
– Solid / High Density Pu Insulation For Cold Containment Around Inner Blast Chamber & Main Door.
– Low Nitrogen Gas Usage.
– Solid Door Handle.
– Better Sound Insulation.
– Special Design Basket( Loading & Unloading Made Easier ).
– Reputable Electrical / Electronic Components & Machine Parts.
– Production Cycle Counter & Hour Meter.
CB-30 Features
– No Screw or Conveyors
– PLC Controls
– Maximum Cooling Temperature – 155 Deg C
– Weight 800 kg
– Solid Construction and 80mm Insulated Walls to reduce Nitrogen usage
– 7,000 RPM Blast Wheel – Variable Speed
– Variable Basket Speed
– 30 Litres Effective Capacity
– Coarse and Fine Flash Removal Contained
Compressed Air Requirements
– Air Supply for Safety Interlocks and Blow Down
– Minimum pressure – 5 Bars
Electrical
– 3 ph., 380-460VAC, 50/60 Hz
– PLC Controls
– All Reputable Electrical/Electronic Components, which are commonly available
Mechanical
– All Stainless Steel Construction – Chamber, Machine Frame and Door Panels
– Completely Enclosed System
– Direct Drive Blast Wheel
– Easy Clean-up
– Solid Door Construction

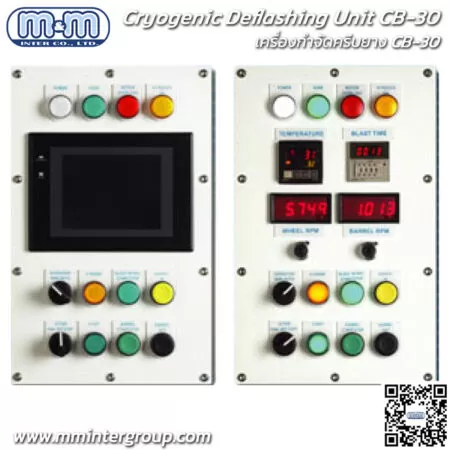

Optional Colour Touch Screen Model
– Ability to store pre-programmed menu
– Supervisor code to setup and alter parameters
– Maximum Cooling Temperature – 155 Deg C
– Easy Menu Selection with warnings on media size to use
