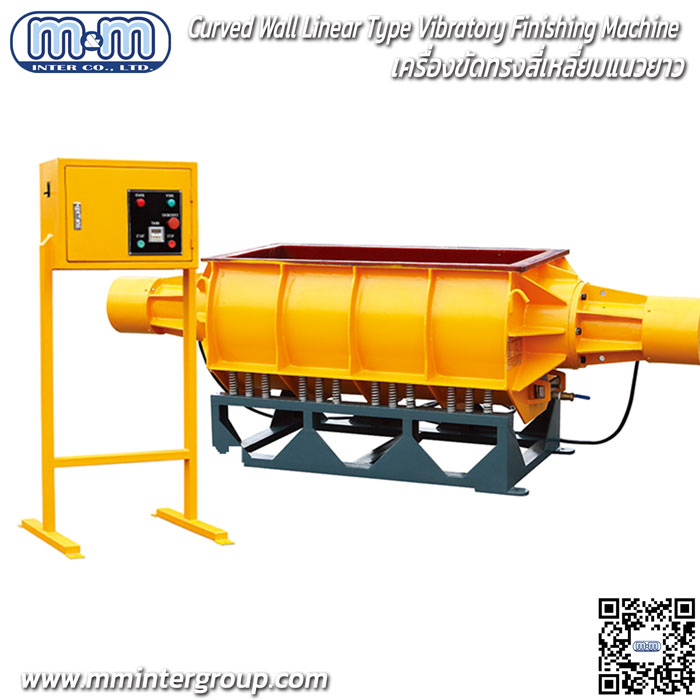

Curved Wall Linear Type Vibratory Finishing Machine
Feature:
1. Compared with U shape linear type vibratory finishing machine, have better media/part relative movement and flow.
2. Can use stainless ball as grinding media, especially for MMZG(A)240 and MMZG(A)500 series curved wall linear type vibratory finishing machine.
| Model | MMZG(A)240 | MMZG(A)500 | MMZG(A)750 |
| Total volume(L) | 240 | 500 | 750 |
| Max overall dimension(mm) | 1880×880×920 | 2870×880×920 | 3354×880×920 |
| Chamber length(mm) | 690 | 1310 | 2000 |
| Chamber height(mm) | 625 | 625 | 625 |
| Chamber diameter(mm) | 670 | 670 | 670 |
| Feeding entry width(mm) | 524 | 524 | 524 |
| PU Lining thickness(mm) | 16 | 16 | 16 |
| Power(km) | 1.1×2 | 2.2×2 | 2.2×2 |
| Weight(kg) | 450 | 1000 | 1600 |
