Linear Type Vibratory Finishing Machine – เครื่องขัดแบบสั่นสะเทือนระบบสายพาน
Specifications:
Vibratory Metal Parts Glazing Machine
1. CE, ISO9001 certificate
2. High quality with best price
3. Metal parts finishing
1. Structure:
Humo Vibratory finishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.

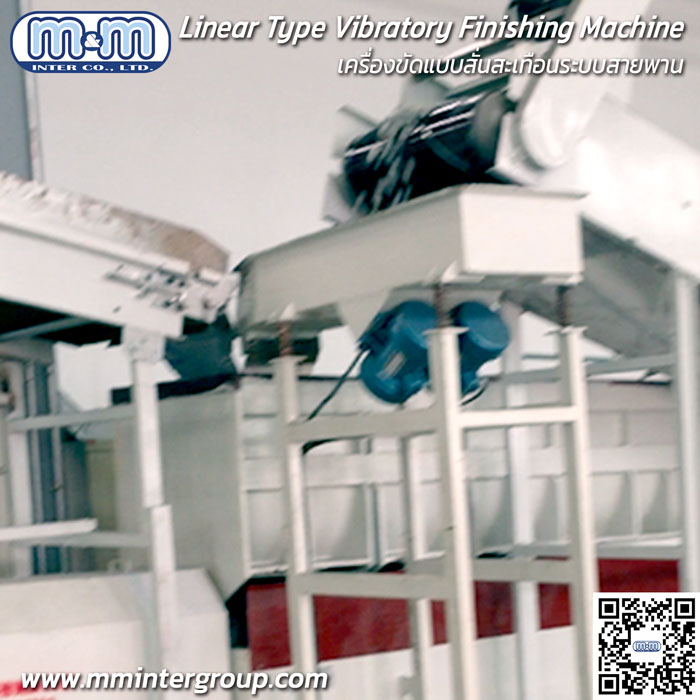

Inertial vibrator: This is the vibrating source of the machine; it is composed Of vibratory motor, springs and eccentric blocks.

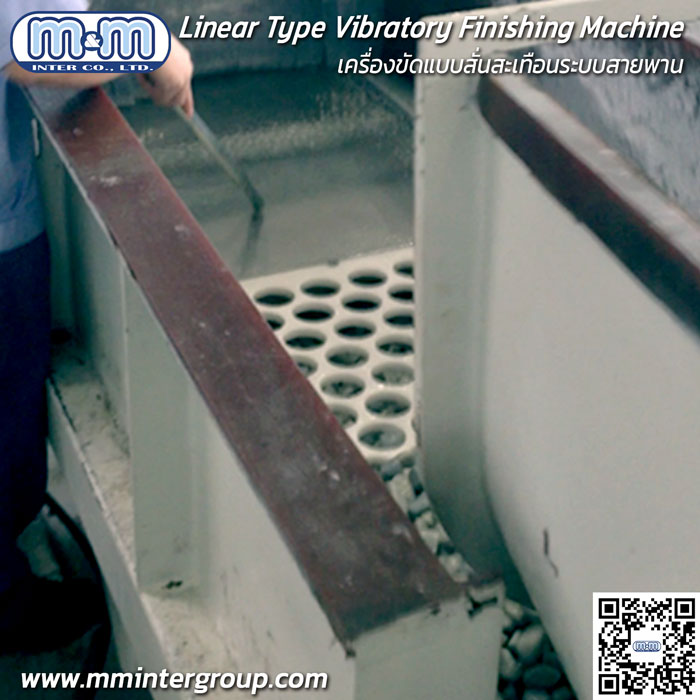

Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable Polyurethane, to weaken the noise and the bump of workpieces on vessel. (For VBA series, there is a separator on the vessel to separate the workpieces from the stones. )

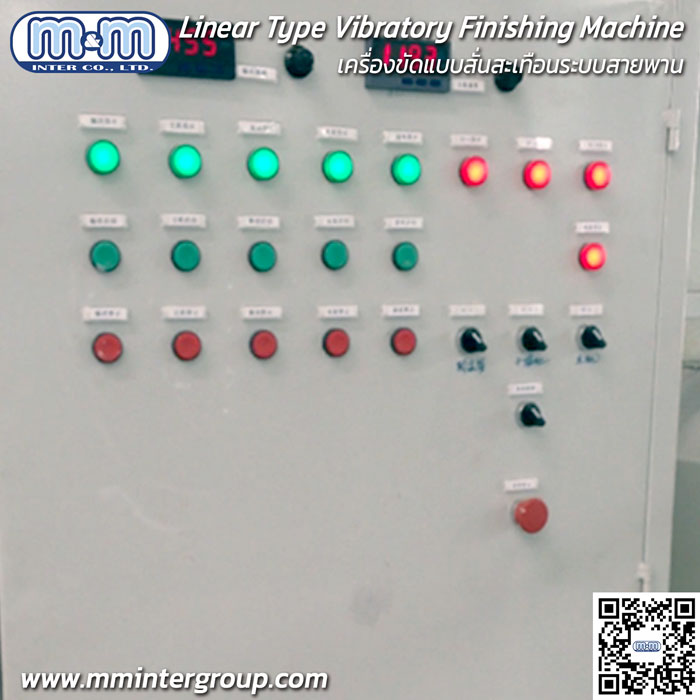

Electrical cabinet: Operate the machine by buttons on the control panel.
Basement: It is weld of steel, and it has springs to hold the vessel.
2. Function:
Humo Vibratory finishing machines are suitable for deburring, descaling, edge radiusing, chamfering, polishing, surface improvement, pre plating finishing all types of components including fully machined parts in metals & plastics
3. Working Principle

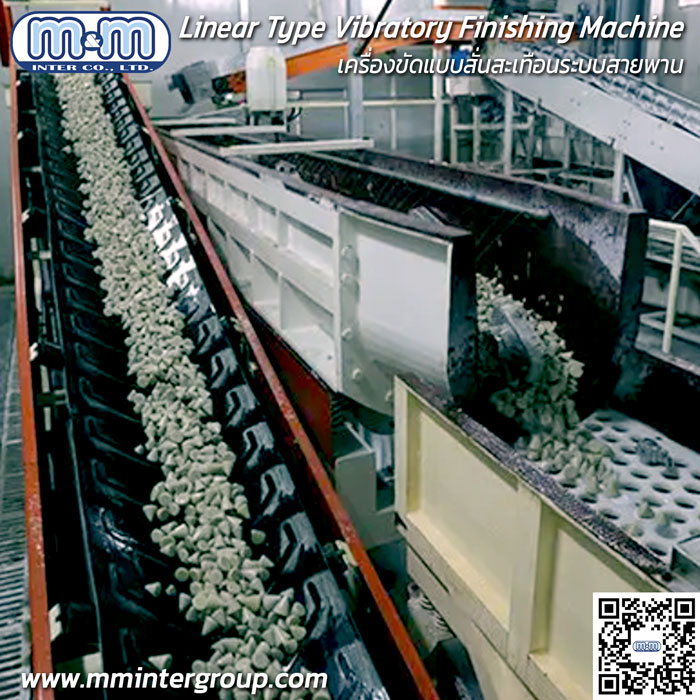

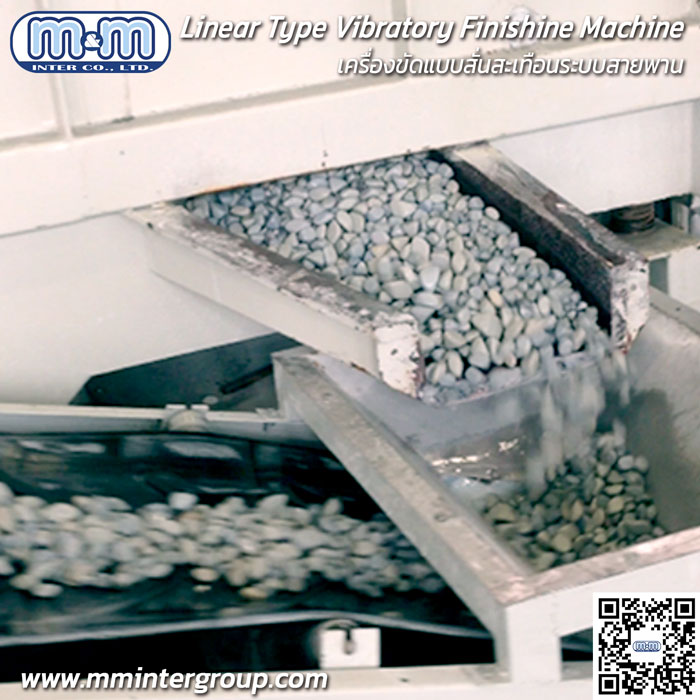

Humo Vibratory Finishing Machine for Metal Working has a ring chamber to hold abrasives (stones) and workpieces. When the machine is working, it makes three-D high frequency vibration. The grinding stones and the workpieces are rolling spirally forward and they are grinding each other during the rolling. This makes the workpieces de-burred, chamfered, polished and clean. To replace the traditional cloth-wheel polishing, the Vibratory Finishing Machine for Metal Working can save a lot of spending on manpower, and lower the cost of production. It can also be matched up with mass production, improve and stabilize the quality of the products.
4. Packing details.
Humo Vibratory Finishing Machine is firmly packed in a plywood case in a whole. And the machine will be wrapped with thin films to protect the outside paint from scraping.
